INTRODUCTION

 What is Automation ?
 Overview of Automation
 Motivation
 Automation in industry
 Examples from different industry sectors

What is automation ?

          Benefit of automation is that it saves labor; however, it is also used to save energy and materials and to improve quality, accuracy and precision.


           Automation is basically the delegation of human control function to technical equipment for
1. Increasing productivity
2. Increasing robustness (consistency)
3. Reducing direct human labor costs and expenses.
4. Increasing quality

History of automation

 Manual Control
 Pneumatic Control
 Hard wired logic Control
 Electronic Control using Logic Gates
 Programmable Logic Controller

1. Manual Control
           All the actions related to process control are taken by the operators manually.
Disadvantage
           Likely human errors and consequently its effect on quality of final product.
           The production, safety, energy consumption and usage of raw material are all subject to the correctness and accuracy of human action.

2.  Pneumatic Control
           Industrial automation, with its machine and process control, had its origin in the 1920s with the advent of "Pneumatic Controllers“.
            Actions were controlled by a simple manipulation of pneumatic valves, which in turn were controlled by relays and switches.
Disadvantage
            Bulky and Complex System
            Involves lot of rework to implement control logic
            Longer project time

3. Hard wired logic Control
            The contactor and relays together with hardware timers and counters were used in achieving the desired level of automation
Disadvantage
             Bulky panels
             Complex wiring
             Longer project time
             Difficult maintenance and troubleshooting

 4. Electronic Control using Logic Gates
             In 1960s with the advent of electronics,  the logic gates started replacing the relays and
auxiliary contactors in the control circuits.
             The hardware timers & counters were replaced by electronic timers.
Advantage
             Reduced space requirements
             Energy saving
             Less maintenance & greater reliability

Disadvantage
             Changes in control logic not possible
             More project time

5.  Programmable Logic Controller
             In 1970s with the coming of microprocessors and associated peripheral chips, the whole process of control and automation  underwent a radical change.
             Instead of achieving the desired control or automation through physical wiring of control devices, in PLC it is achieved through  a program or say software.
             The programmable controllers have in recent years experienced an unprecedented growth as universal element in Industrial Automation.
            It can be effectively used in applications ranging from simple control like replacing small number of relays to complex  automation problems.

Advantages of PLCs
          Reduced space
          Energy saving
          Ease of maintenance
          Economical
          Greater life & reliability
          Tremendous flexibility
          Shorter project time
          Easier storage, archiving and documentation



Industrial automation main components

Field instruments
Control hardware
Control software

Automation : Typical installation...


Automation : Typical installation...




Sensors or Transducers (Field Instruments)

Sensors are used to sense the changes in physical parameter like Temperature, Level, Flow, Humidity, Pressure and many others..
Transducers are used to convert not electrical quantity to electrical signals
Hence it concludes, sensors and transducers are placed in field to sense the physical parameters and send the electrical signal of respective changes to control rooms.
These signal are either digital or analog signals for example, Ohm(RTD), mv(Thermocouple),  standard 4-20mA signal, etc.

Widely used field instruments in industries

Flow transmitters (Orifice, Ventury, Electromagnetic flow meter etc)
Pressure transmitters (Bourdon gauge, Bellows, Diaphragm, etc)
Temperature transmitters (Thermocouple, RTD, Thermister, etc)
Level Transmitter (Ultrasonic transmitter, Radar type, capacitive type)
pH transmitter
Conductivity Meter...etc

Famous manufacturing companies (Field instruments)

Fisher Rosemount
Yokogawa
Endress+Hauser
Forbes Marshall
Honeywell ABB
Control hardware

Standalone PID Controllers
Programmable logic controllers
Distributed control system

1. Standalone PID Controllers


These are the small controlling hardware which fulfill the requirement of closed loop.

This can be installed in field or in control room

Every companies have variations in programming patterns to setup PID configuration



Typical installation of standalone PID controller




Master slave communication with RS485

Famous manufacturing companies in PID controllers

ABB
Yokogawa
Moore
Forbes Marshall
Honeywell
Eurotherm
ASCON

2.  Programmable logic controllers
PLCs


             A programmable logic controller (PLC), or programmable controller is an industrial digital computer which has been ruggedized and adapted for the control of manufacturing processes, such as assembly lines,  or robotic devices, or any activity that requires high reliability control and ease of programming and process fault diagnosis.





What is inside PLC ?

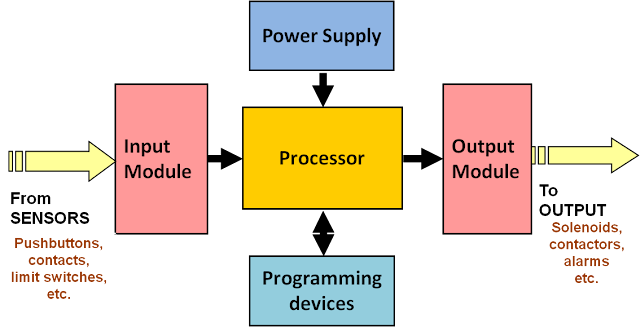

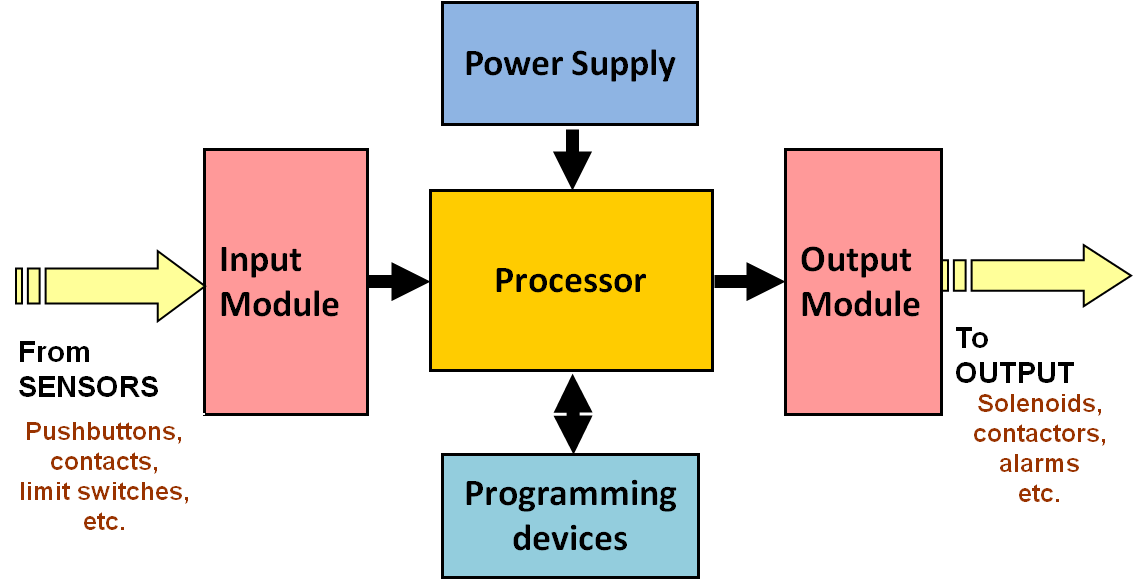

Architecture of PLC

A programmable logic controller (PLC),  is a like a microcontroller which is used for doing so many applications.
It basically consist of
1. CPU with processor and program memory
2. Power supply
3. Input module
4. Output module
5. Control  bus

1. Parts of Delta PLC




2. Parts of Allen Bradley PLC




3. Parts of Siemens PLC




4. Parts of Zelio Schneider electric PLC





Distribution of I/O's through controller





Distributed control system (DCS)


General architecture of DCS



System cabinets and Marshalling cabinets of DCS

System and Marshalling cabinet arrangement



Various DCS and Hybrid DCS providing companies


DCS

1. Yokogawa (Centum VP)
2. Honeywell (EPKS)
3. Emerson (Delta V)
4. Forbes Marshall


Hybrid DCS

1. Allen Bradley (Compact logix and control logix)

Various Communication protocol used in DCS or PLC systems and its hierarchy





LAN (Ethernet)
Modbus, CAN, Serial communication
OPC (OLE for Process Control)
Control NET
Foundation Field bus
Profibus (DP,PA)
Device NET



Various languages used in PLC and DCS


Ladder Logic ( LAD/LD)
Function Block Diagram (FBD)
Sequential Function Chart (SFC)
Structured Text (ST)
Instruction List (IL )



Supervisory Control and Data Acquisition software (SCADA)


                   SCADA (supervisory control and data acquisition) is a category of software application program for process control, the gathering of data in real time from remote locations in order to control equipment and conditions.



Features of typical SCADA software

    Dynamic process graphic
    Real-time and Historical trending
    Alarms
    Recipe Management
    Security
    Device connectivity
    Script for logic development
    Database connectivity


Displays used for monitoring in SCADA systems




Some SCADA software available in market


Intouch (Wonderware factory suit)
Wincc (Siemens)
Simplicity (GE Fanuc)
RS View32 (Allen Bradley)


Flow of project in industry




Core branches/career of Instrumentation and its scope in Industry

JOB OPTIONS


 EPC
Engineering Procurement and construction
Designing of total plant
Automation work includes in EPC companies
Designing of P&ID drawings

 Automation
Designing of the Automation system
Erection and Commissioning
Maintenance and Troubleshooting of existing system

All information on Instrumentation Engineering...!!

All information on Instrumentation Engineering...!!
Welcome all...

I am Tushar Bhaskarwar sharing experience from industrial and college level about instrumentation branch.

Various department from instrumentation are give below...

1) Process instrumentation and automation (Automation companies)

  • PLC
  • DCS
  • SCADA
  • Industrial protocals (HART, Foundation Fieldbus, PROFIBUS, MODBUS, etc)
  • Some important terms used in industry


2) Instrumentation and control system (Design engineering) [EPC companies]

  • Piping and instrument diagrams (P&ID)
  • Specification sheets
  • Data sheets and hookup drawing
  • Valves information (Types of valves, valve selection and sizing, Cavitation, flashing, noising calculation, actuator basics)

3) Field Instrumentation [Oil and gas companies, power plants engineering]

  • Field instrumentation commissioning
  • Erection
  • Sensors and transducers
  • Controllers (P, I, D and PID)
  • Different types of processes in industry (Like feedback , feedforward, cascade, ratio, split range etc...)


Detail engineering companies includes all above three points...


4) Bio-medical Instrumentation

5) Mechatronics Department

          This is a branch of instrumentation deals with control and automation (Mechanical + Instrumentation).
